POWER CABLES

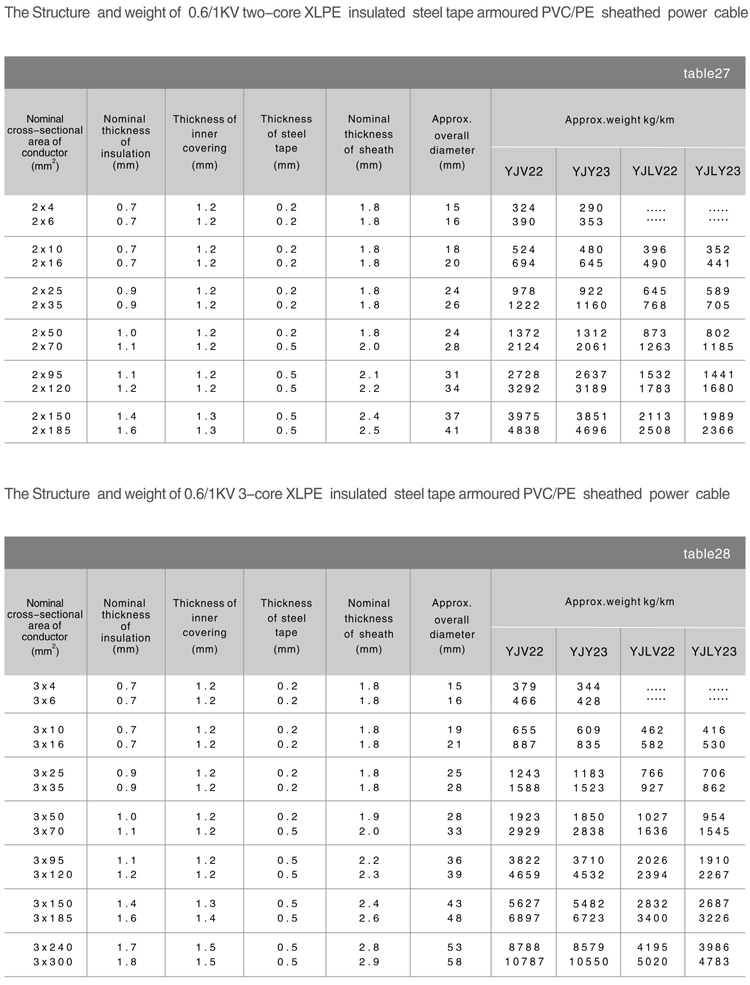

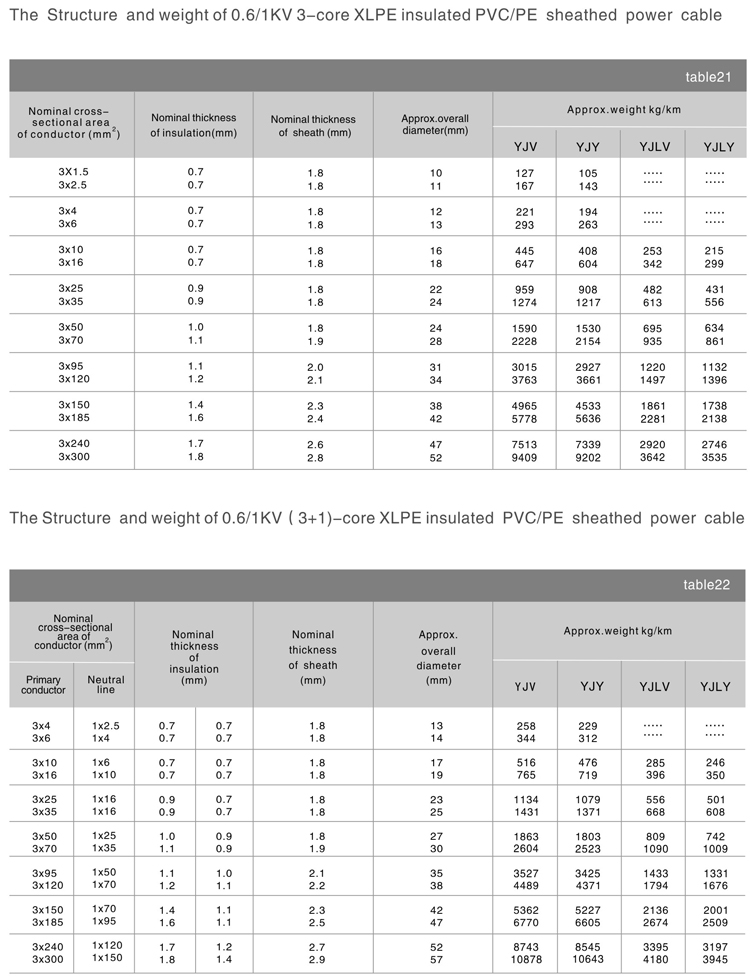

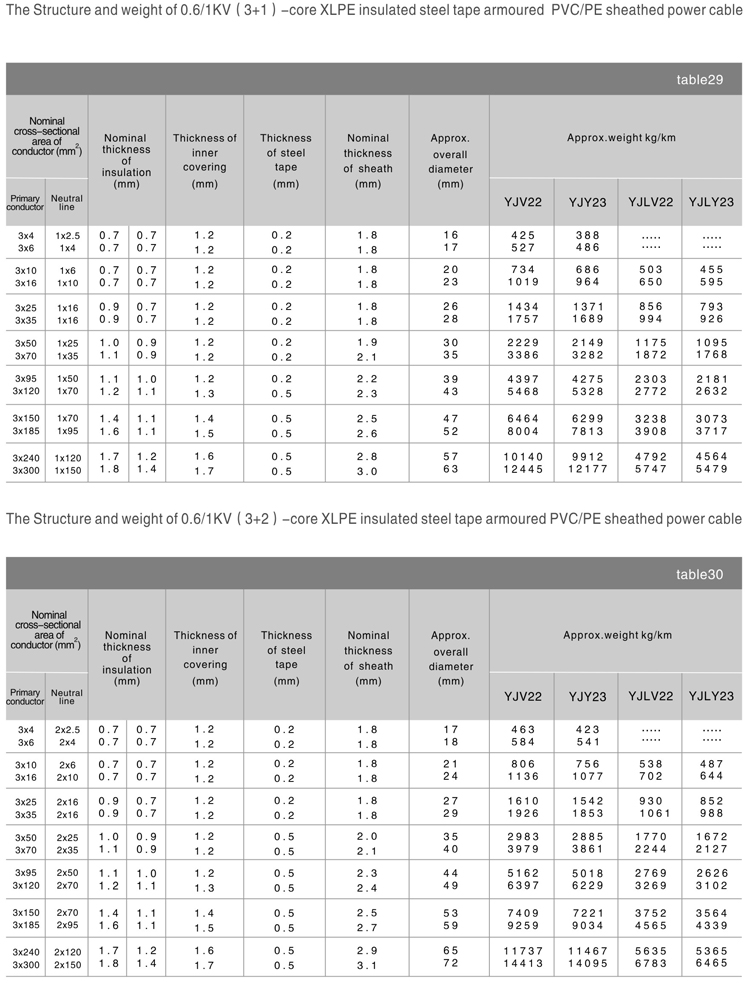

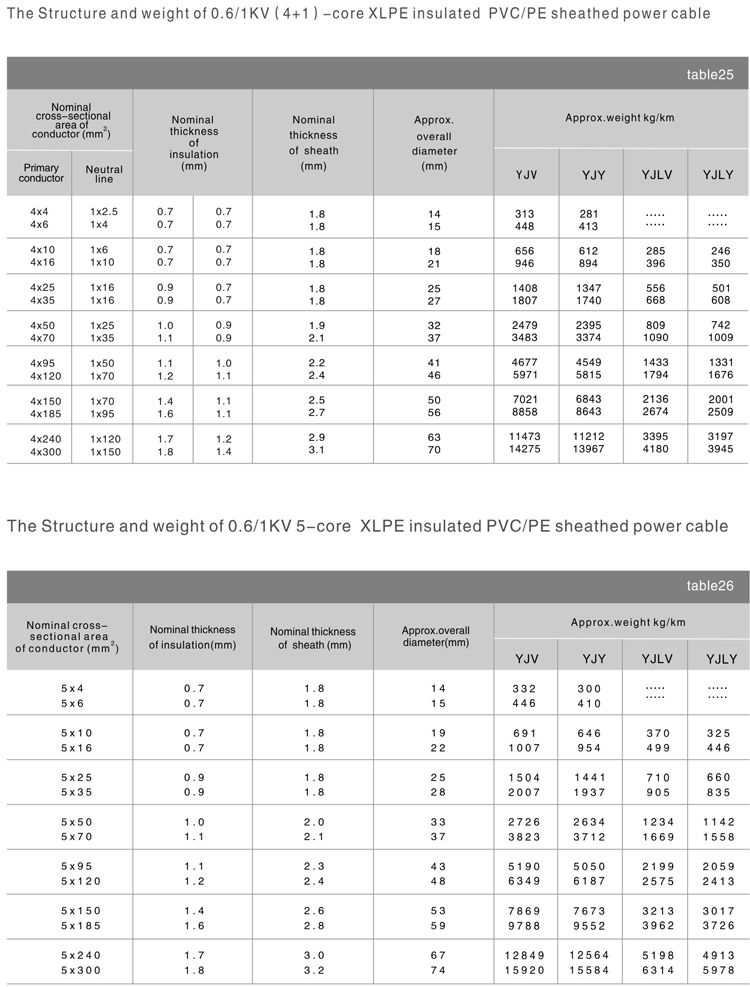

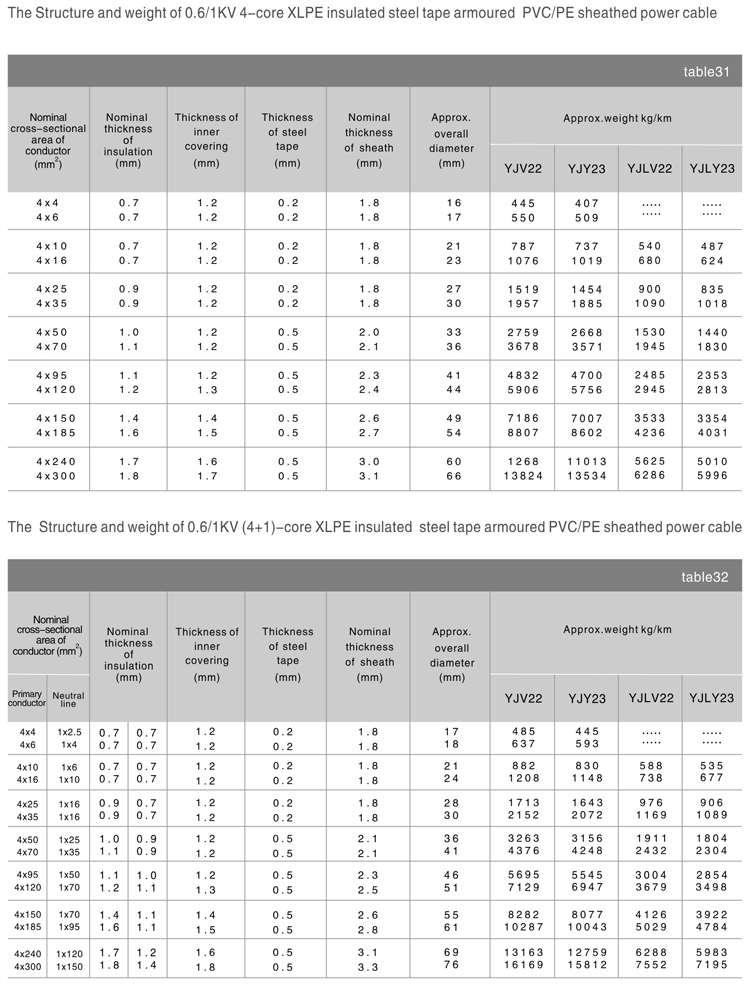

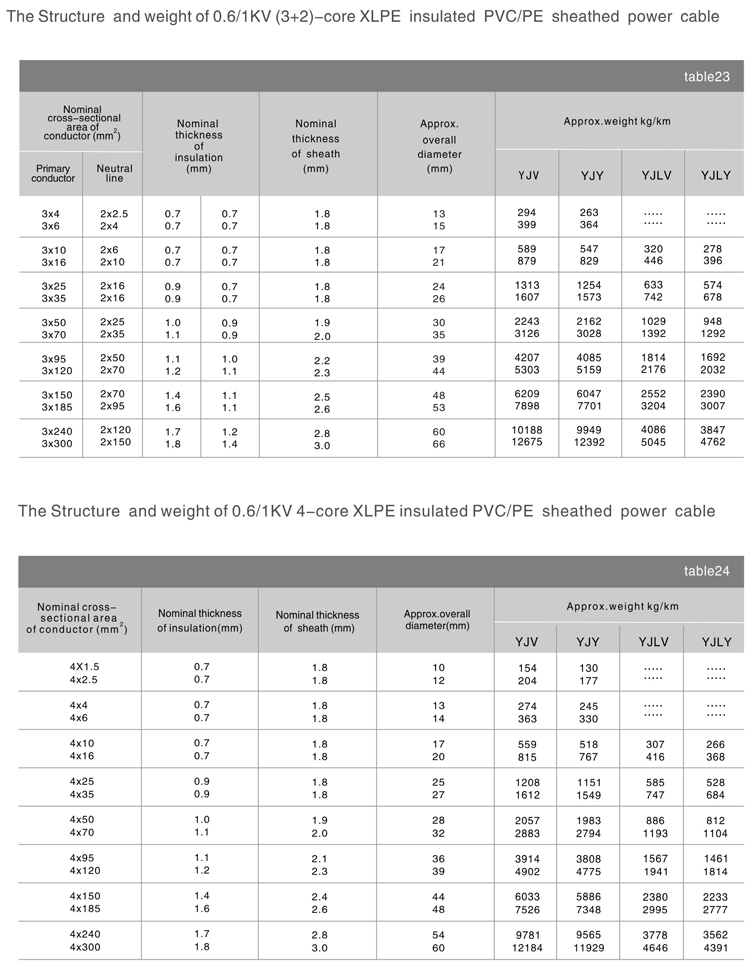

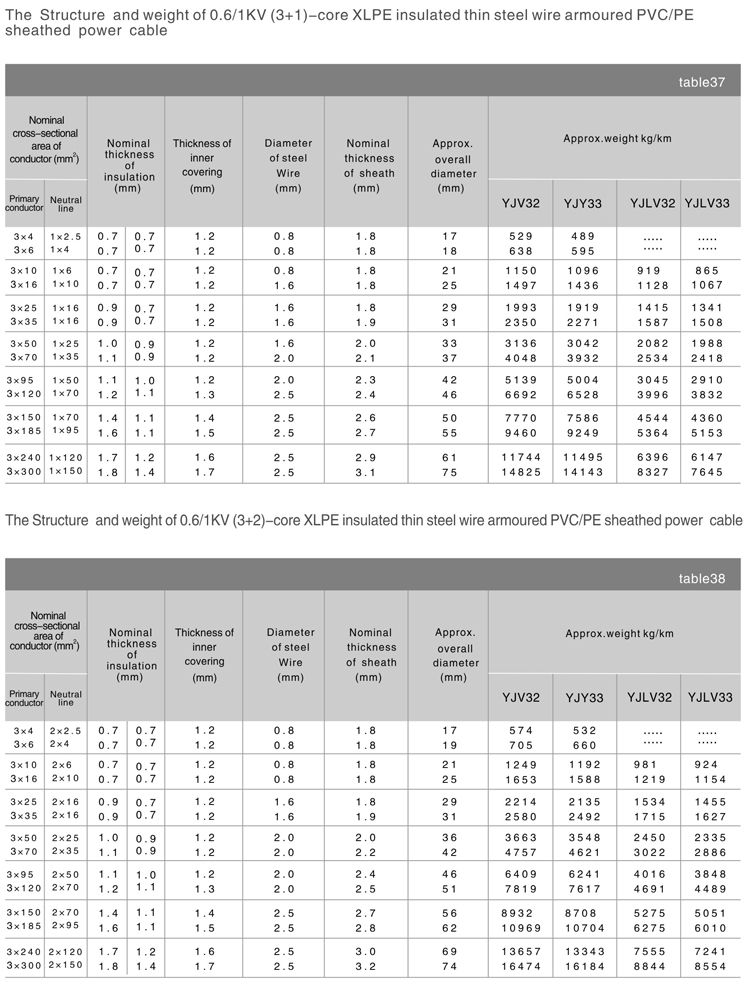

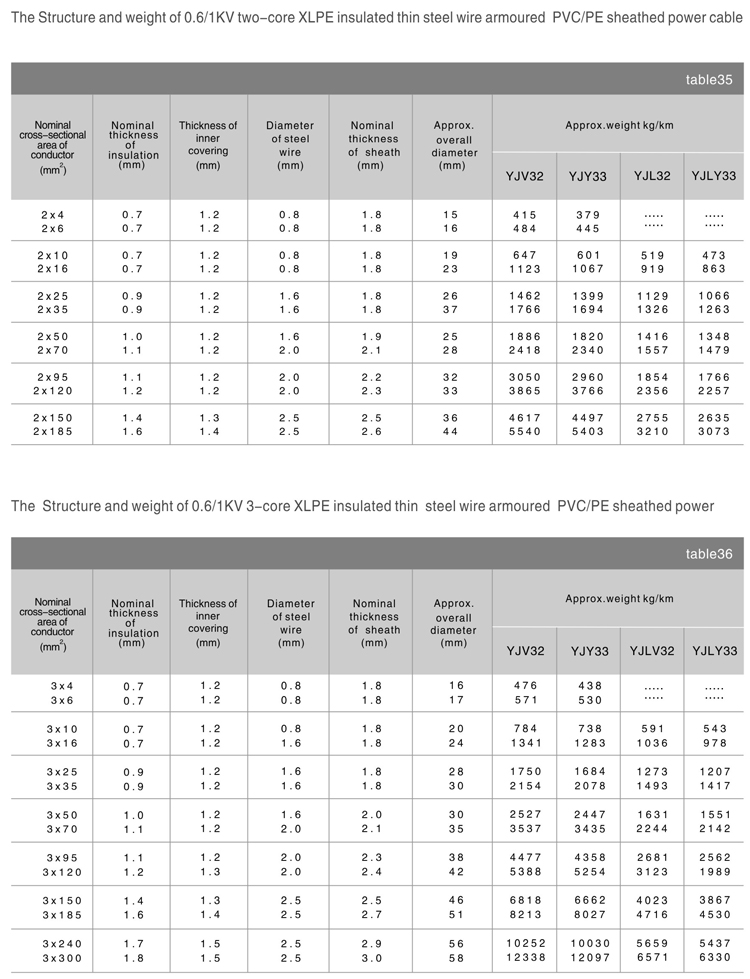

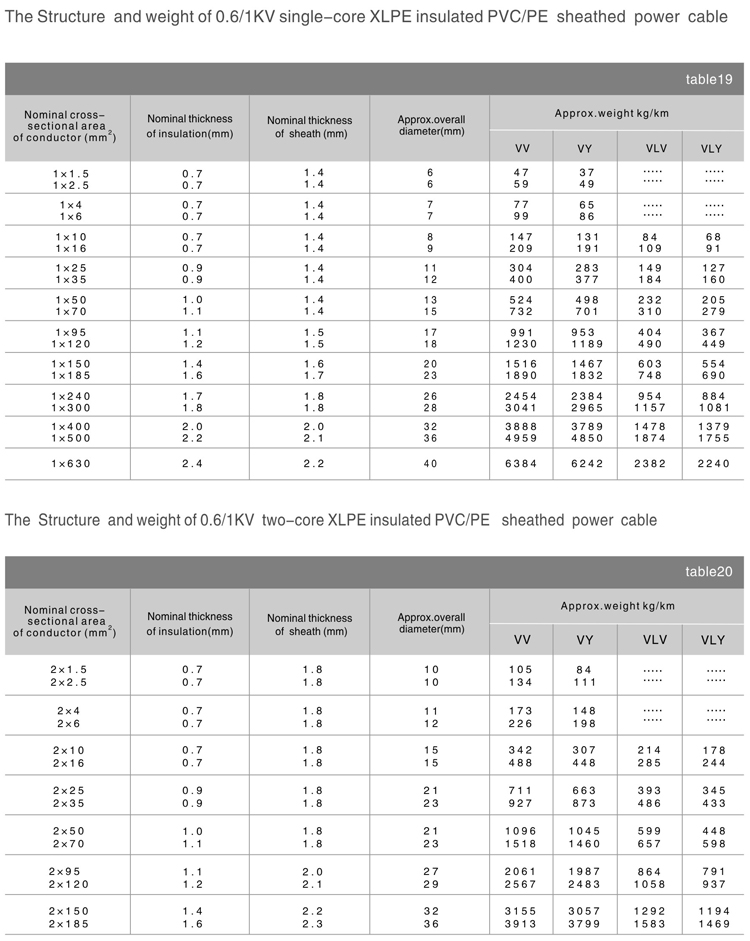

The Structures,weight rated current of 0.6/1KV XLPE insulated PVC sheathed power

Release time:2024-04-18 15:05:04| viewed：

Print this page || Close the window

Previous：The structures,weight and rated current of 0.6/1KV PVC insulated power cable
Next：The rated current of 6/6(6/10)KV XLPE insulated power cable
