Your present position：Home >> Product >> GENERAL RUBBER SHEATH SOFT CAB

GENERAL RUBBER SHEATH SOFT CAB

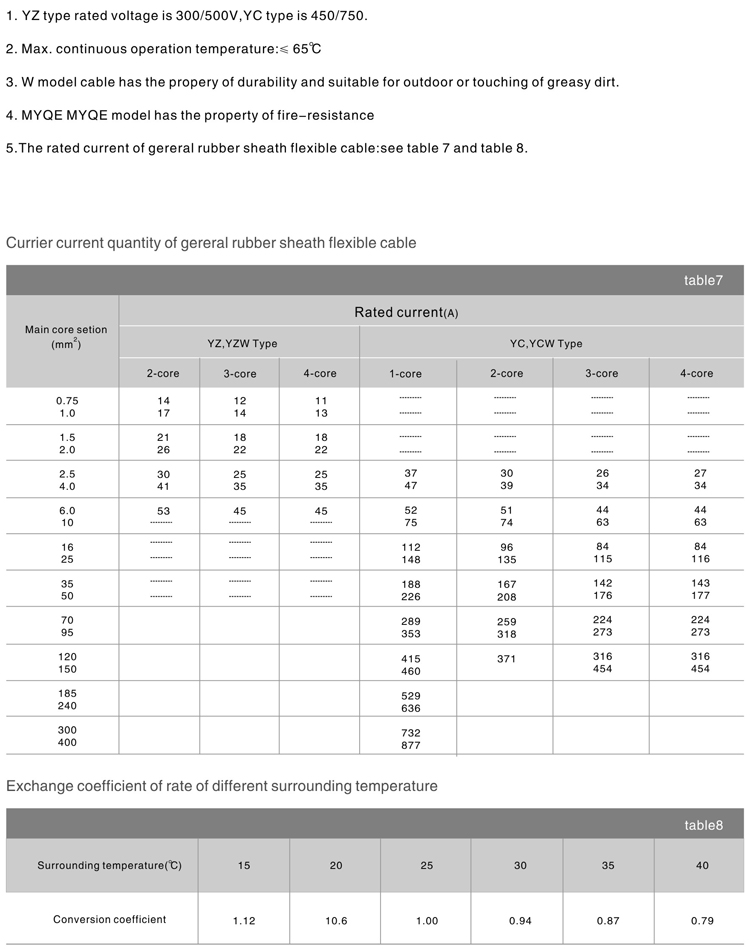

Main properties of general rubber sheath flexible cable

Release time:2024-04-17 14:46:42| viewed：

Print this page || Close the window

Previous：Cable structure size see table3、table4、table5、table6
Next：Product introduction
