CONTROL CABLES

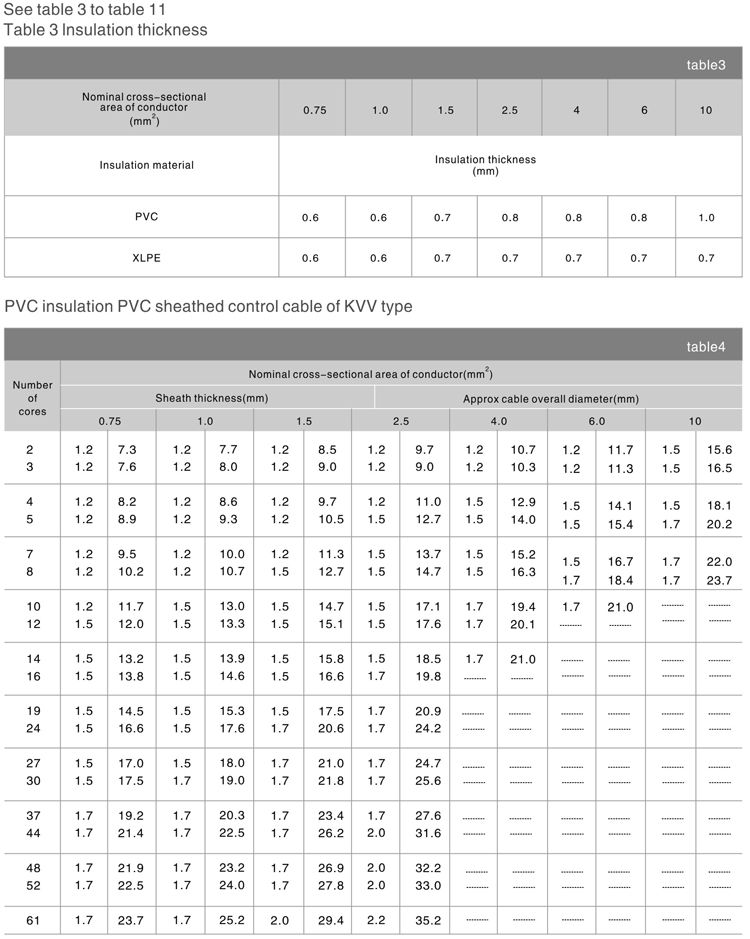

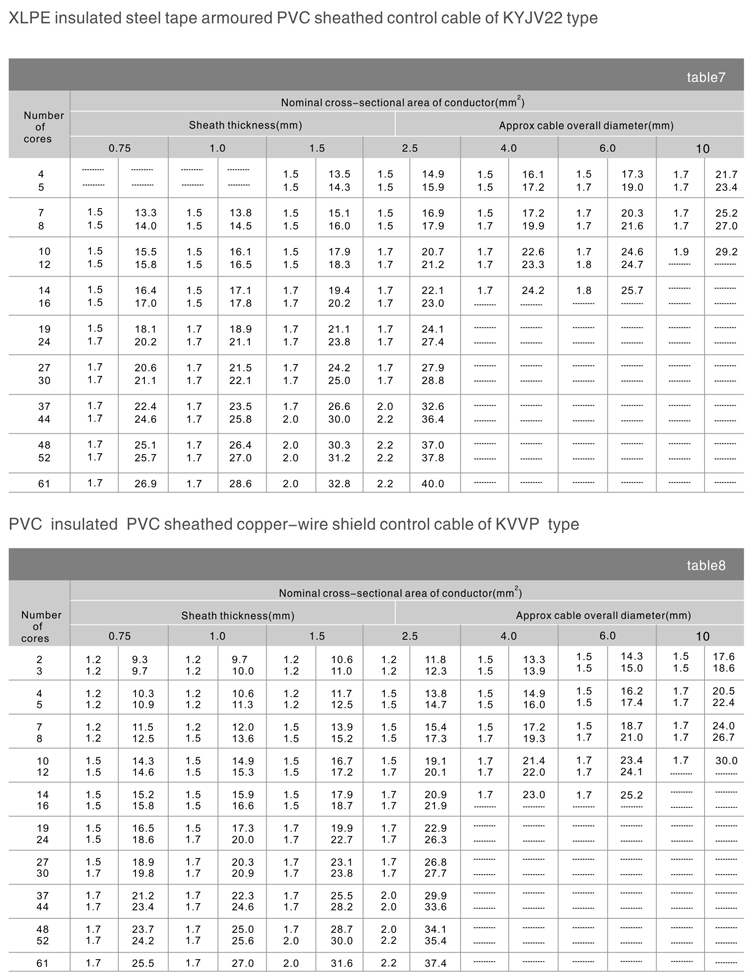

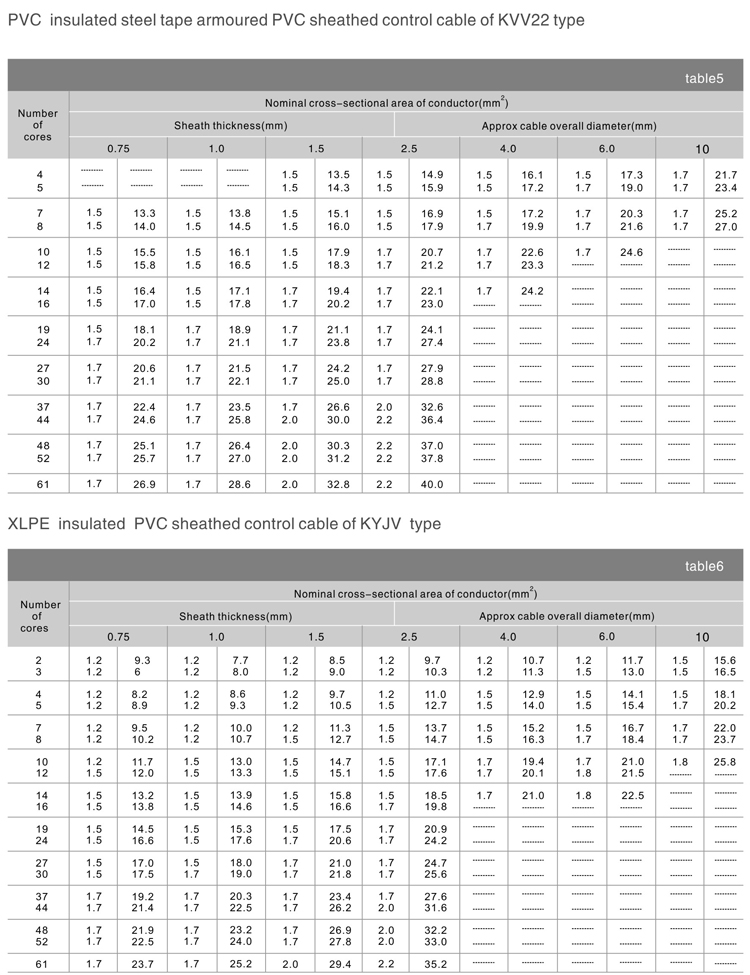

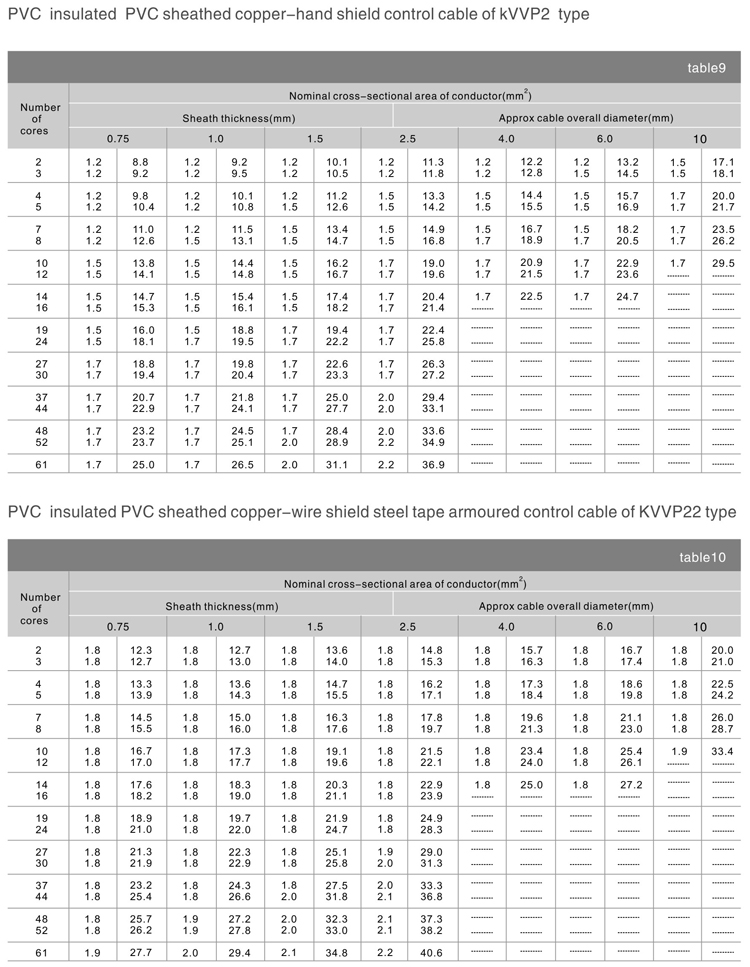

Structure of plastic insulated control cables

Release time:2024-04-17 16:45:21| viewed：

Print this page || Close the window

Previous：Range of production
Next：Operation characteristic
