POWER CABLES

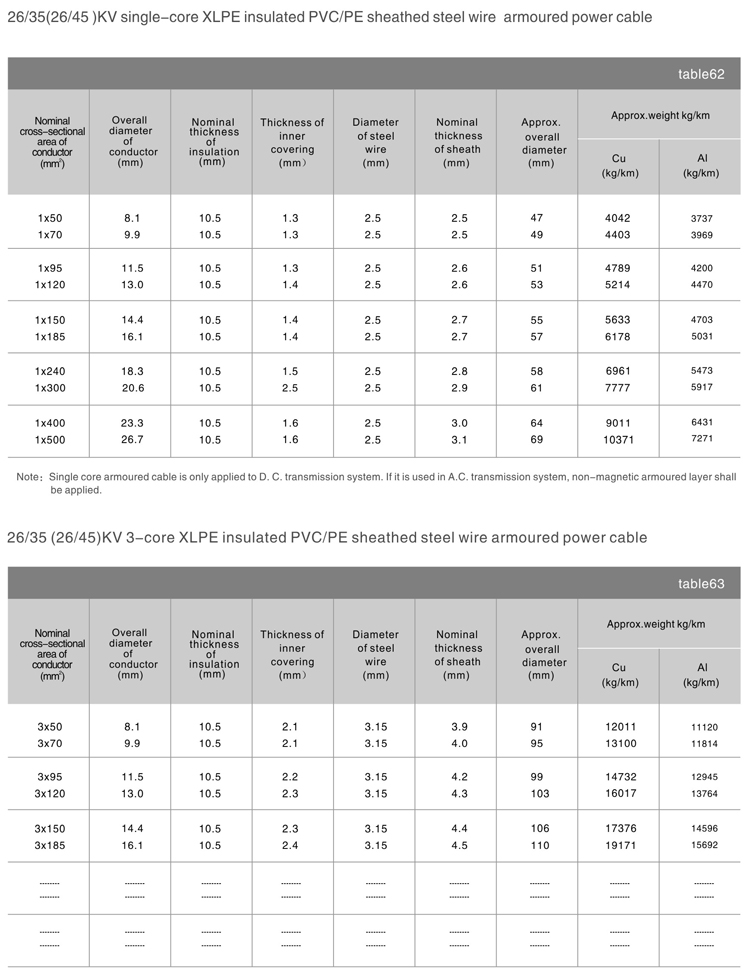

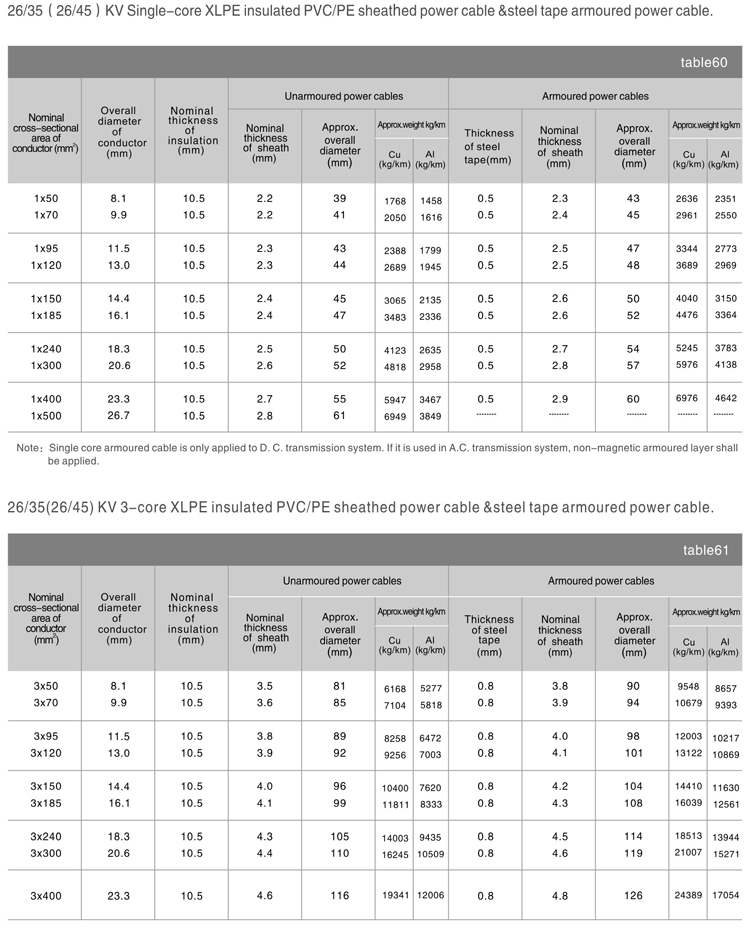

The Structures and weight of 26/35KV XLPE insulated power cable

Release time:2024-04-18 15:50:44| viewed：

Print this page || Close the window

Previous：The structures and weight of 8.7/10(8.7/15)KV XLPE insulated power cable
Next：The structure of flame-retardant and fire-resistant cable
