GENERAL RUBBER SHEATH SOFT CAB

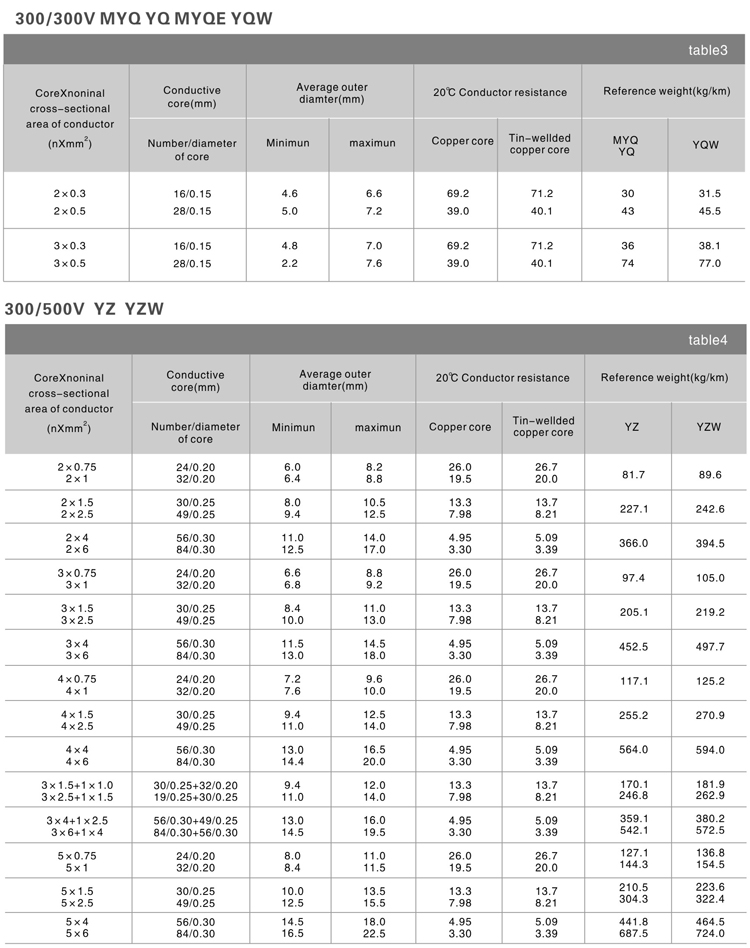

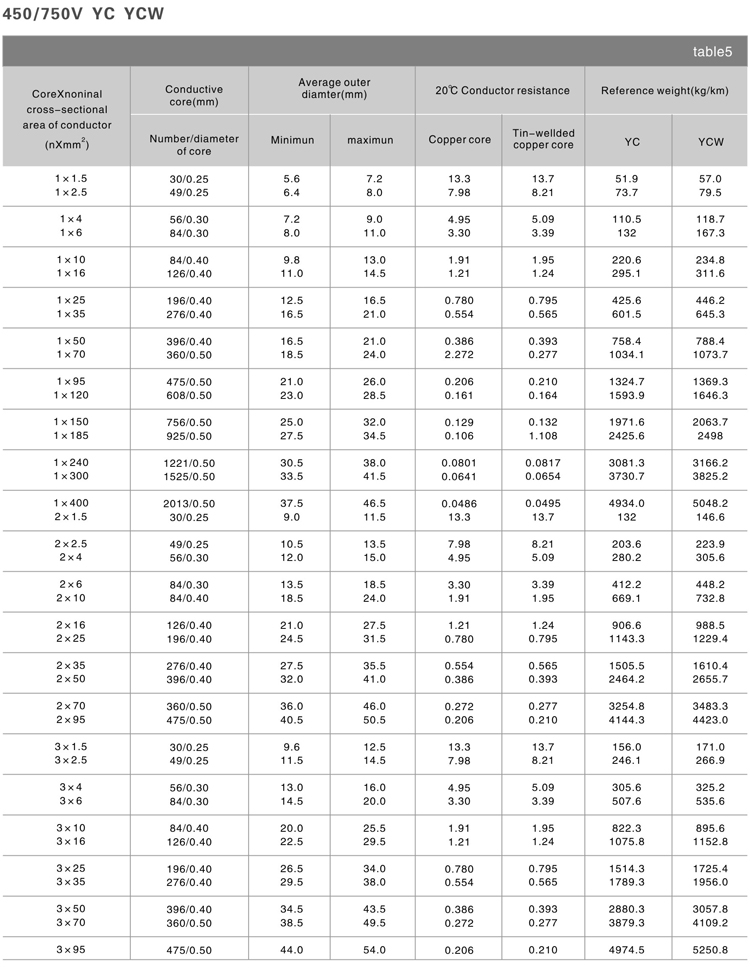

Cable structure size see table3、table4、table5、table6

Release time:2024-04-17 14:43:01| viewed：

Print this page || Close the window

Previous：Production range
Next：Main properties of general rubber sheath flexible cable
