POWER CABLES

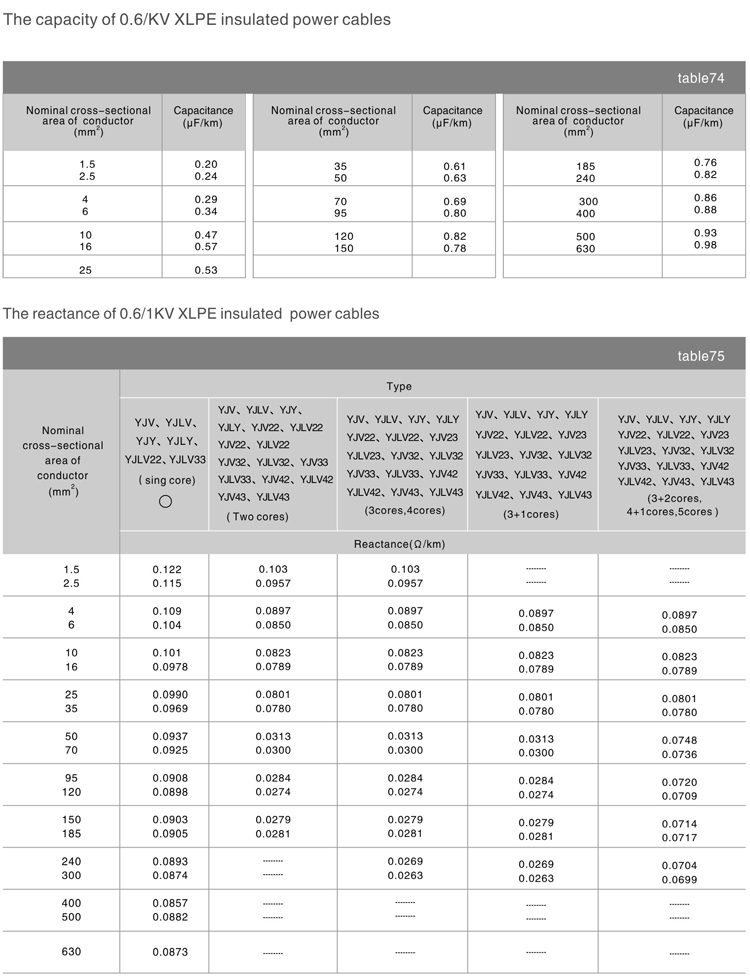

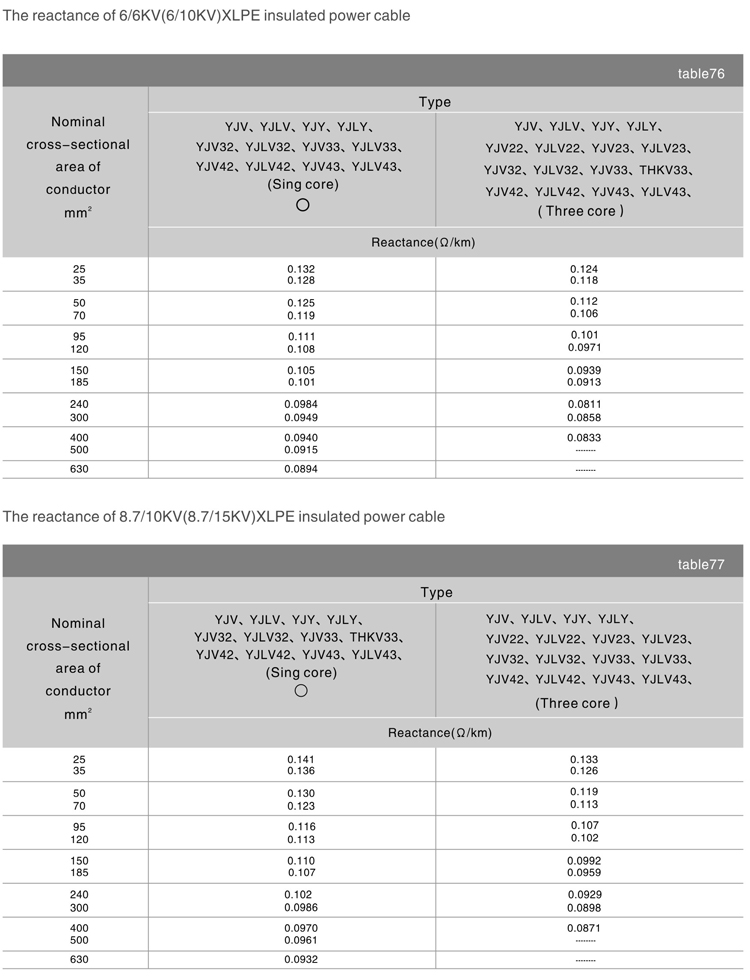

The capacity,inductance and reactance of power cable

Release time:2024-04-18 16:18:51| viewed：
