Your present position：Home >> Product >> PVC INSULATED WIRE

PVC INSULATED WIRE

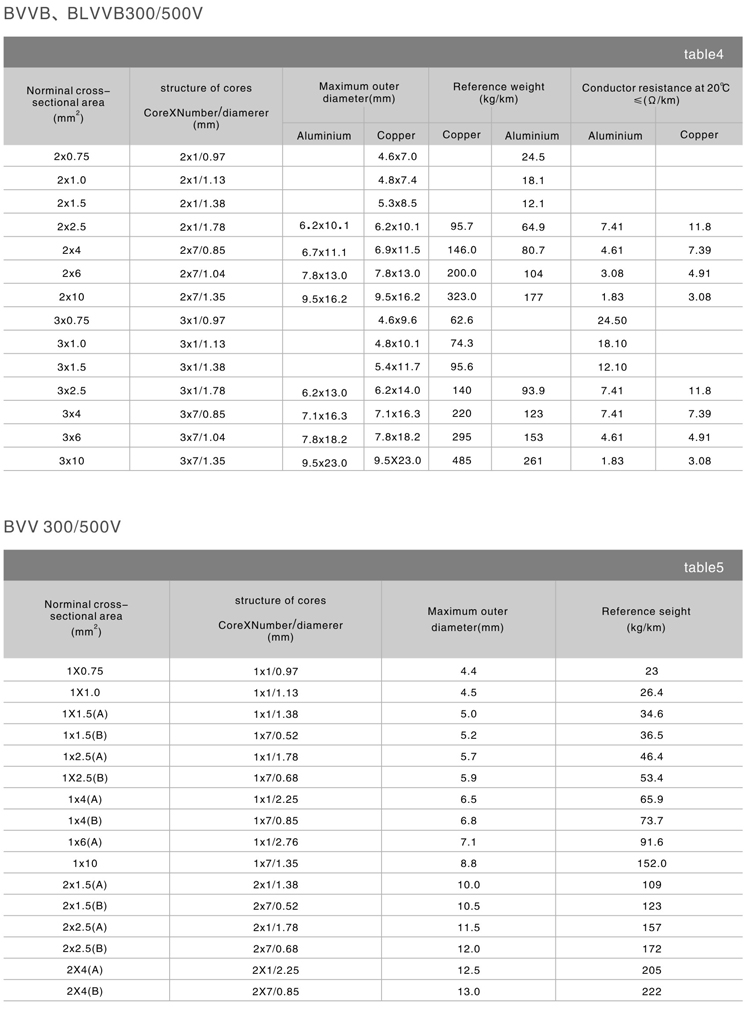

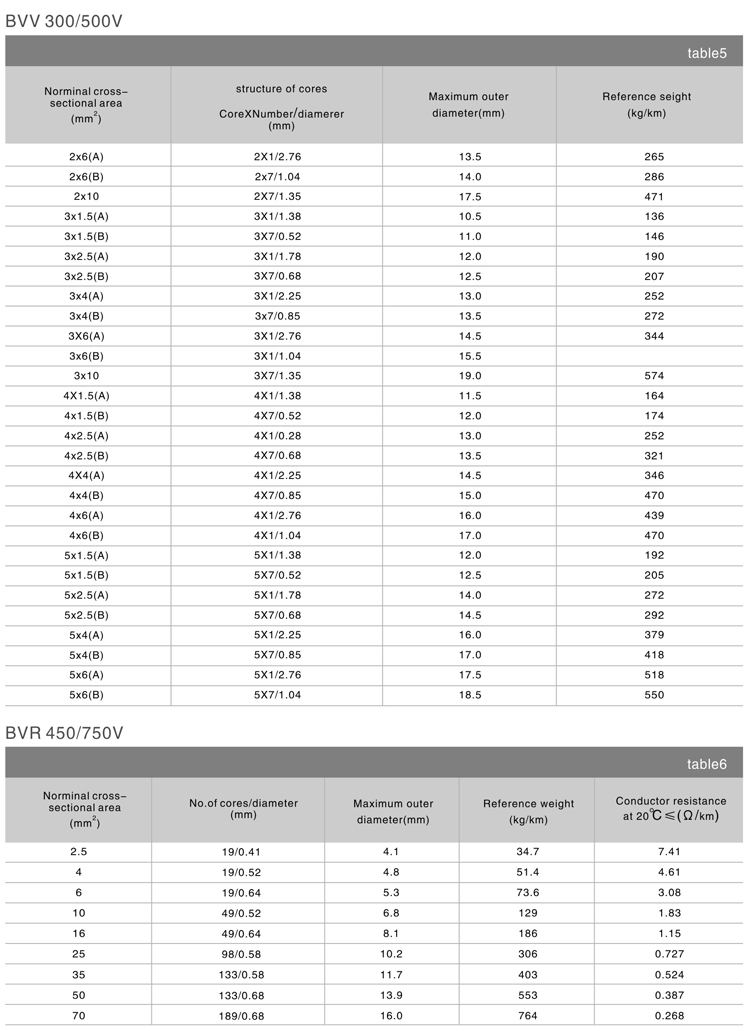

The size and technical parameters

Release time:2024-04-17 15:37:45| viewed：
