POWER CABLES

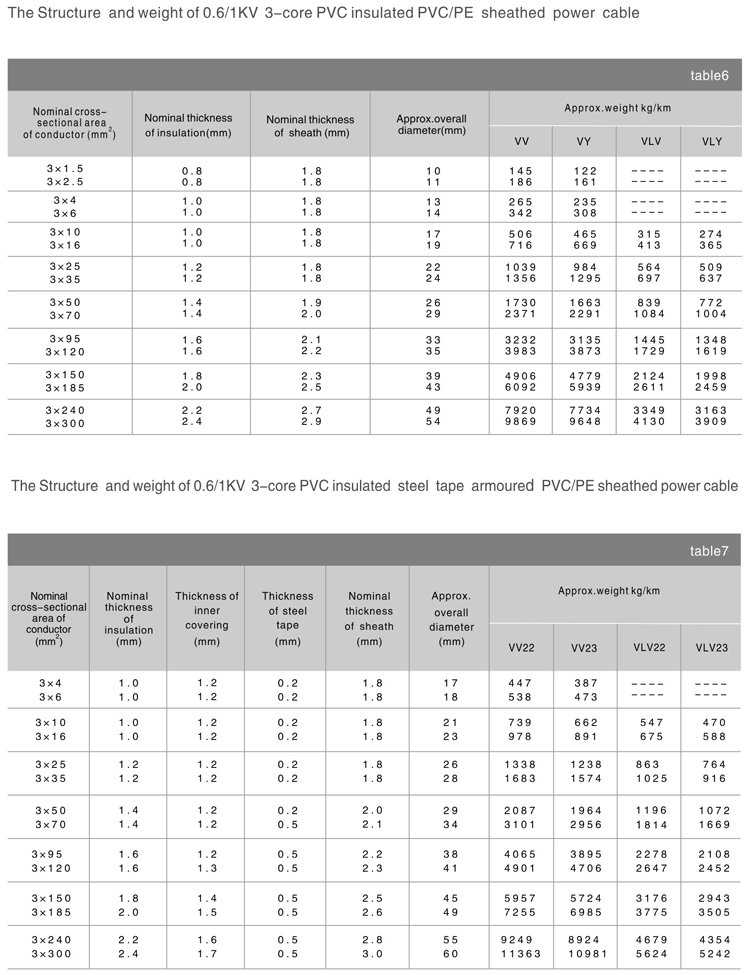

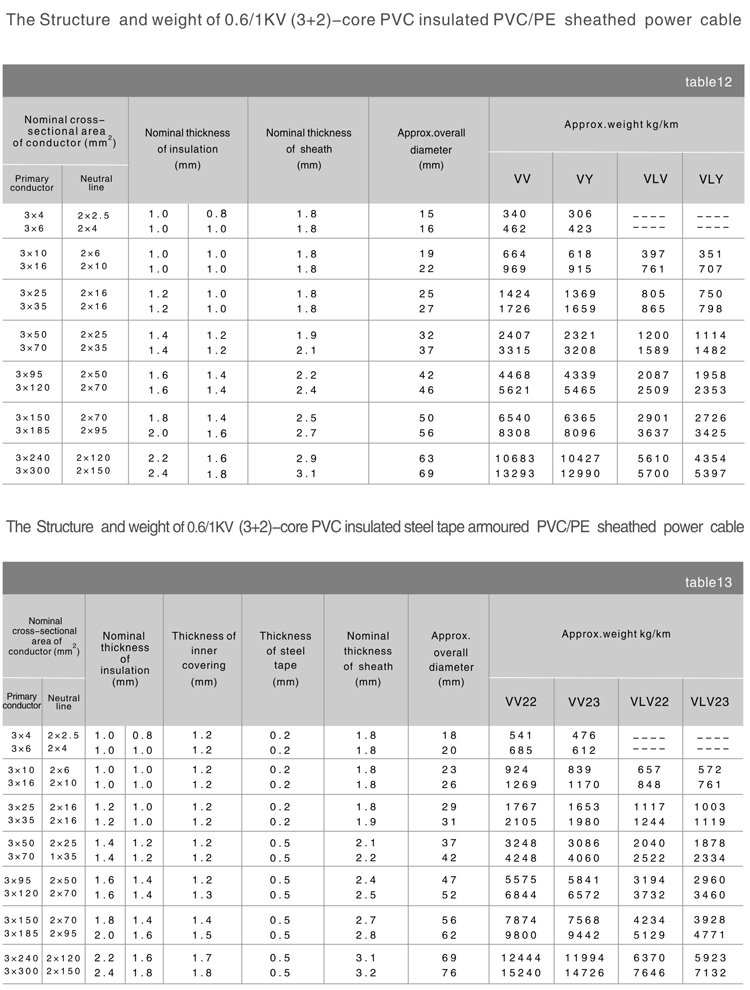

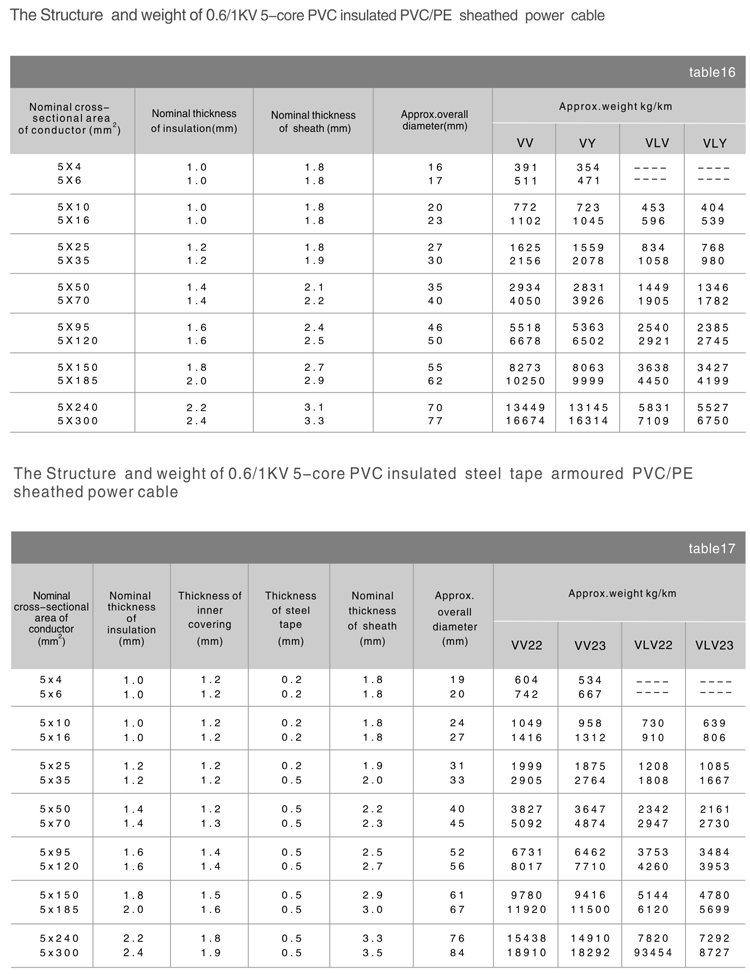

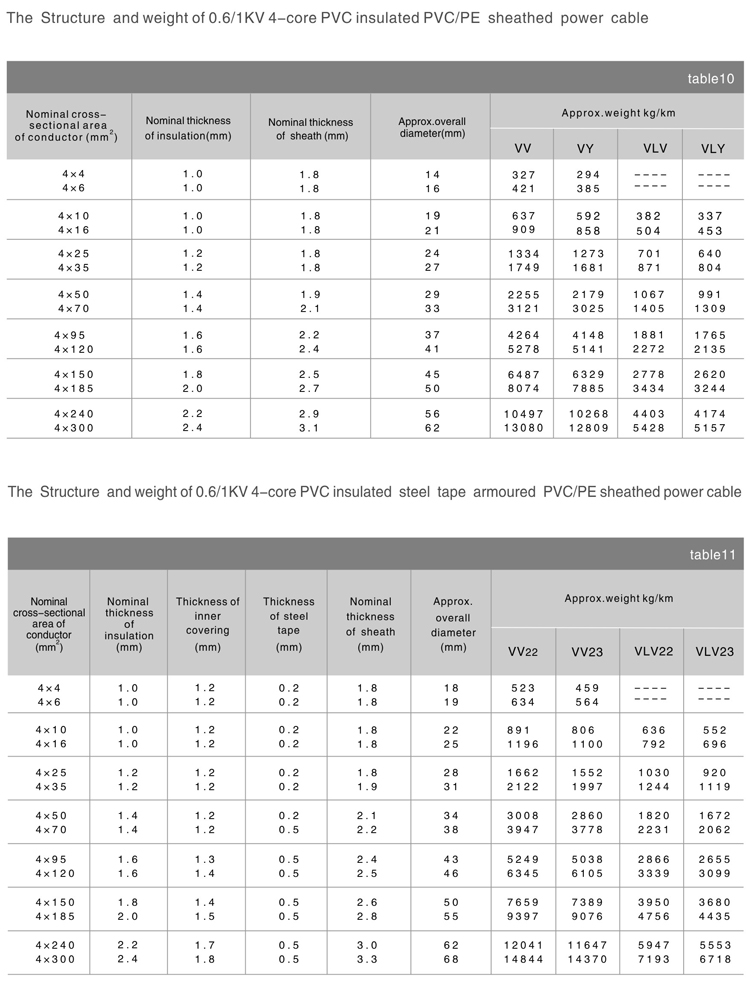

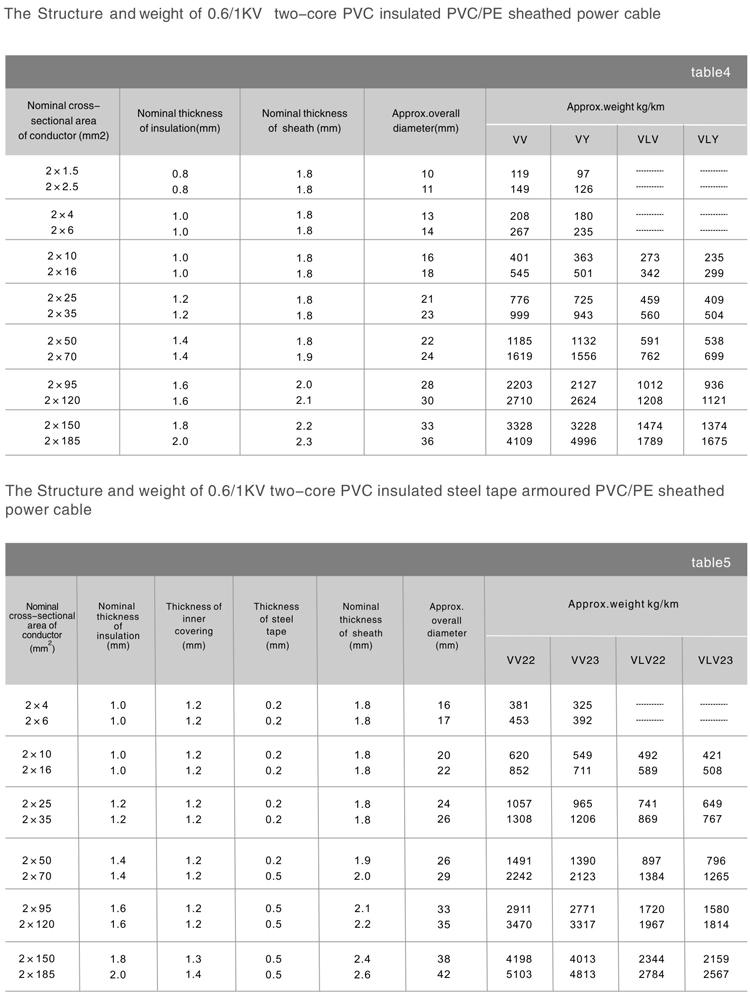

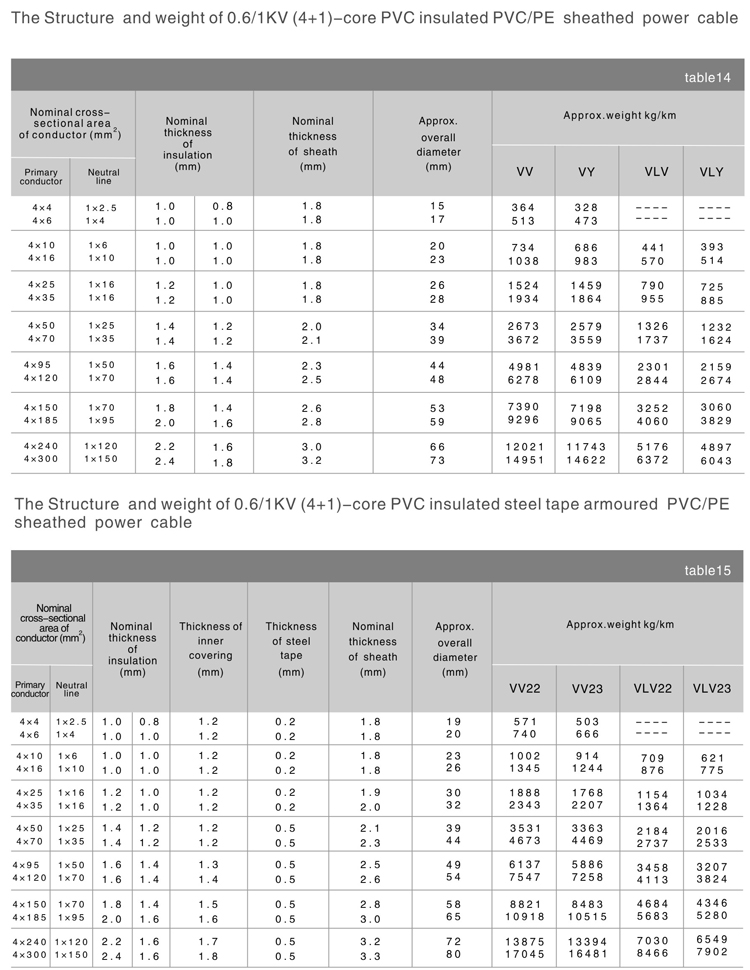

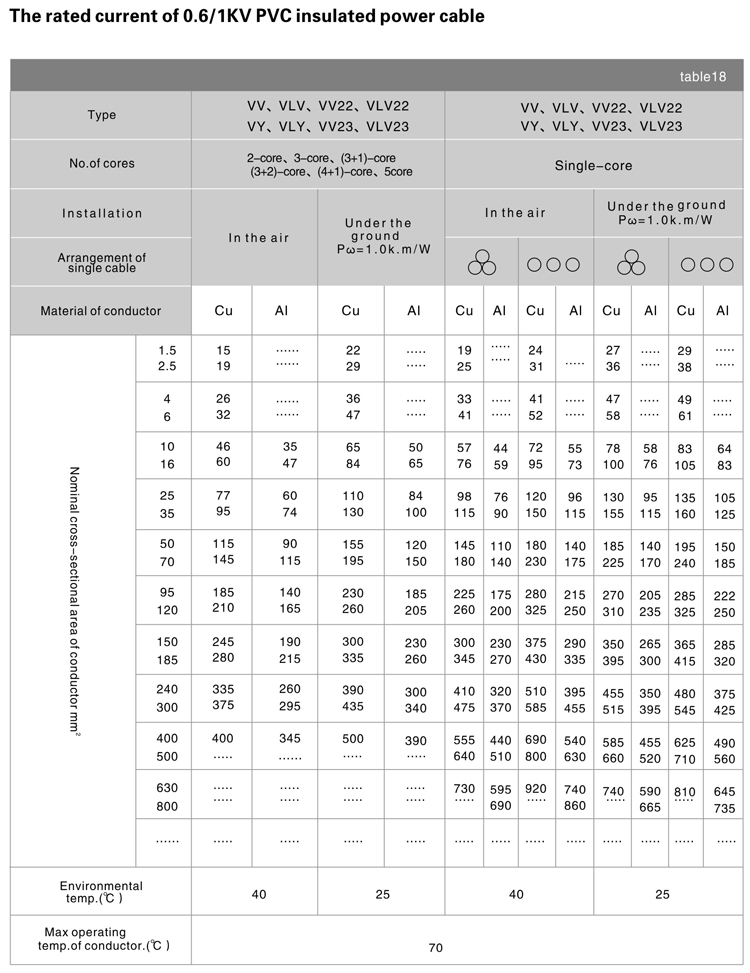

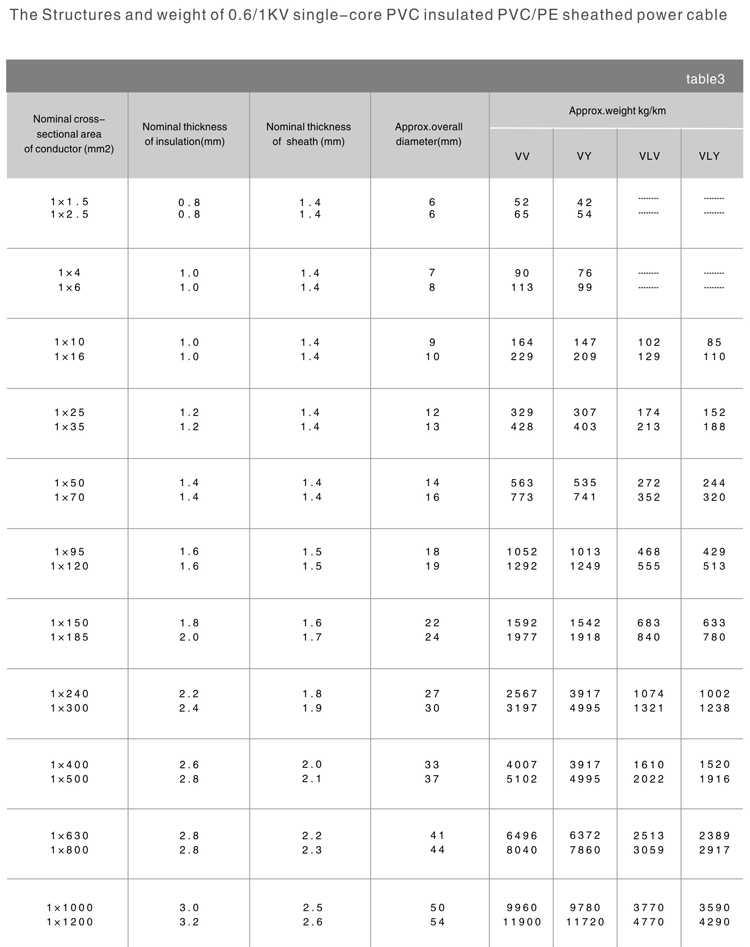

The structures,weight and rated current of 0.6/1KV PVC insulated power cable

Release time:2024-04-18 11:08:19| viewed：

Print this page || Close the window

Previous：Product introduction
Next：The Structures,weight rated current of 0.6/1KV XLPE insulated PVC sheathed power
