Your present position：Home >> Product >> PREFABRICATED BRANCH CABLES

PREFABRICATED BRANCH CABLES

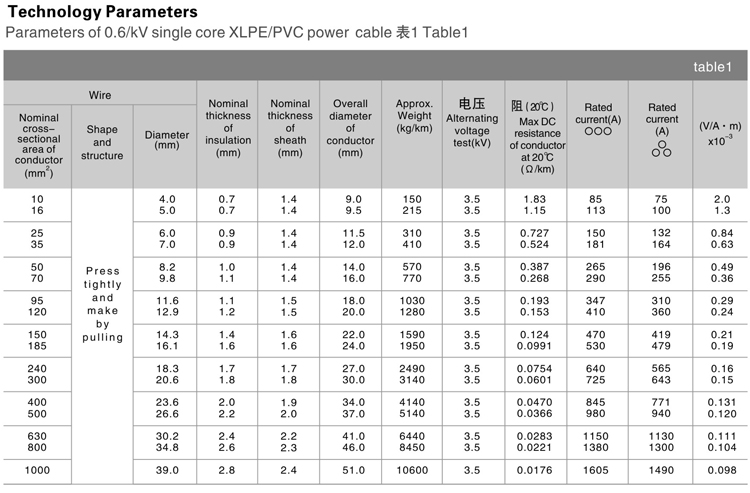

Technology Parameters

Release time:2024-04-17 15:06:31| viewed：

Print this page || Close the window

Previous：Product introduction
Next：Cleaning precast Branch cable
