POWER CABLES

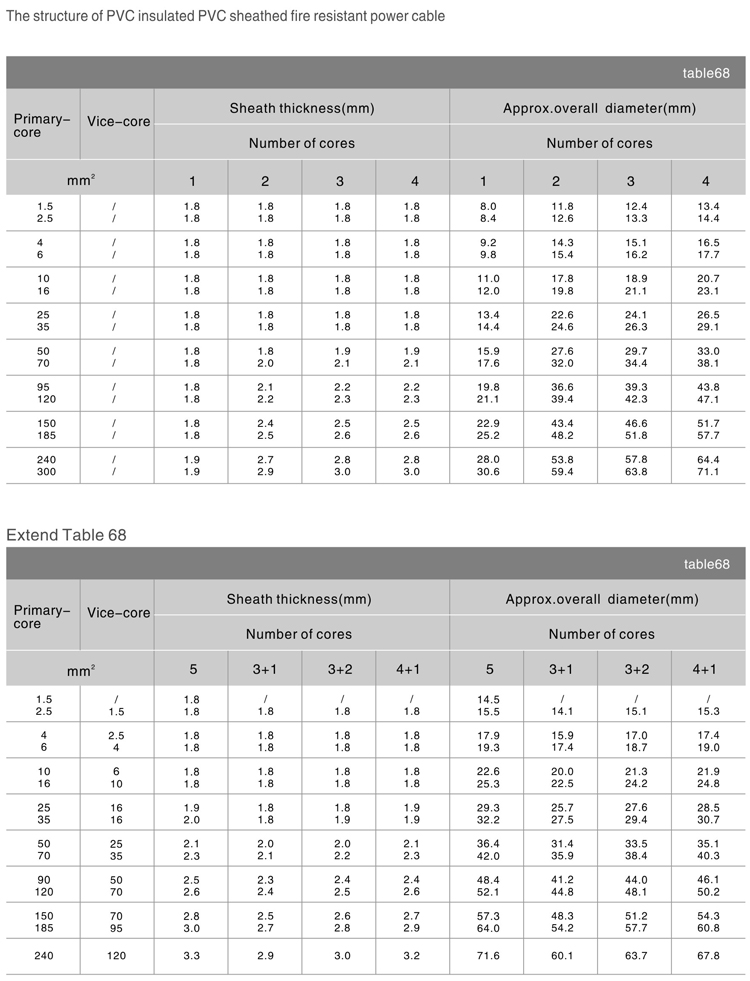

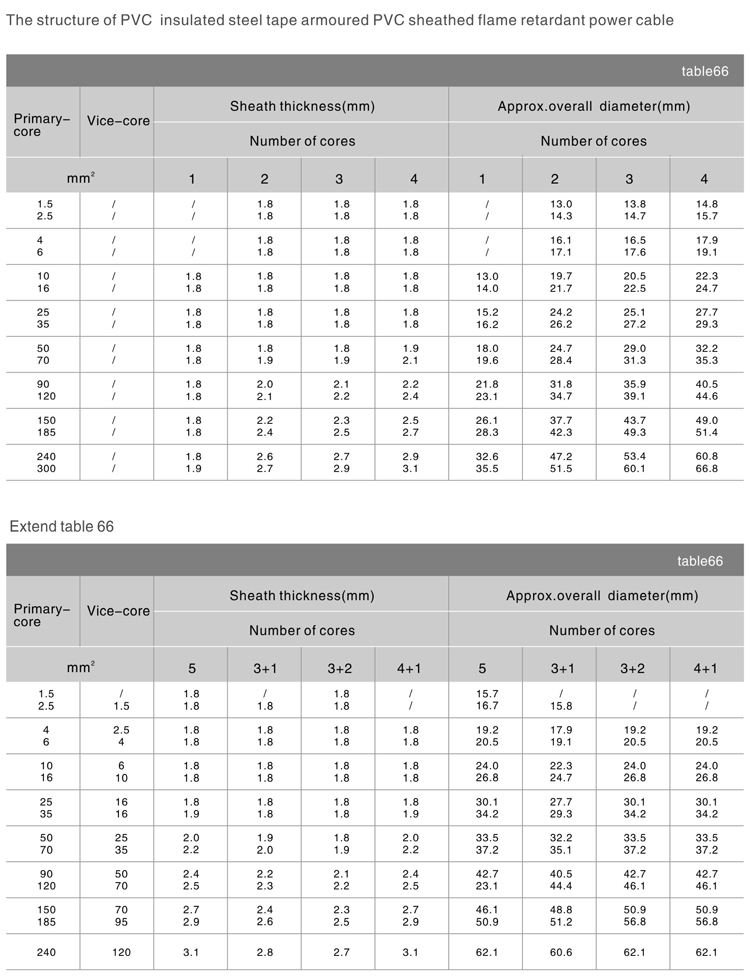

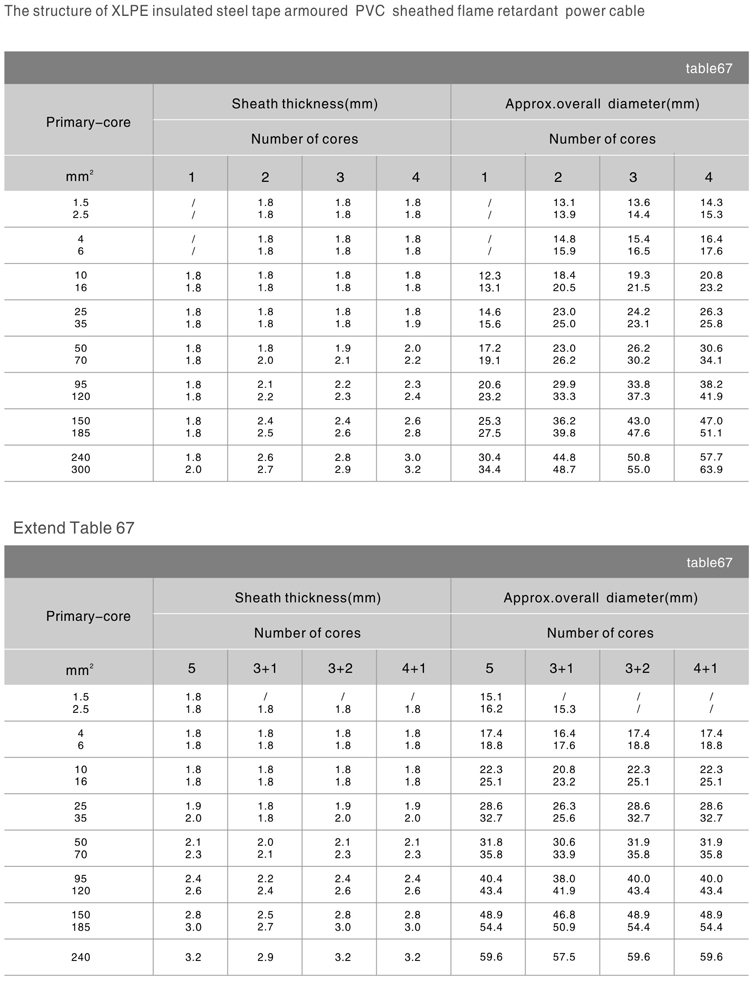

The structure of flame-retardant and fire-resistant cable

Release time:2024-04-18 15:56:21| viewed：

Print this page || Close the window

Previous：The Structures and weight of 26/35KV XLPE insulated power cable
Next：Main properties of power cable
